Product Introduction
The insulation glass wool tube is made from natural rock as raw material, through high-temperature melting and centrifugal process, and is covered with a protective layer on the outside.
Product Introduction

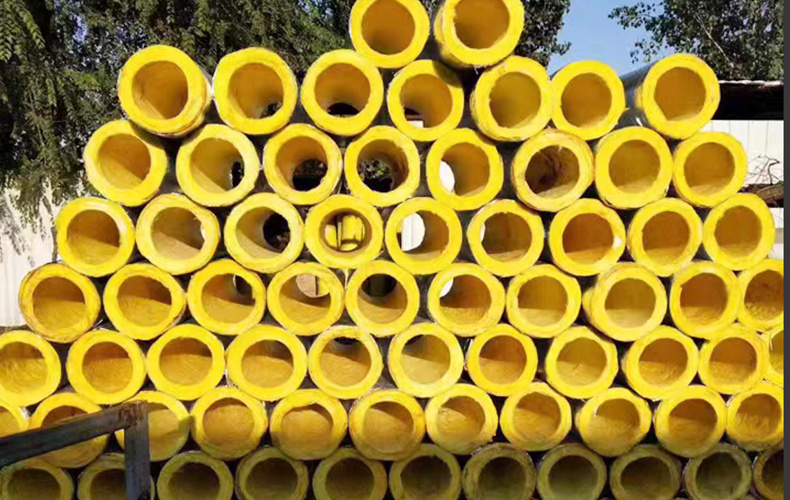

Glass wool tube insulation is one-piece, 1000mm long hinged sections of fiberglass pipe Insulation that are opened, placed over the pipe and secured in place.lt is widely usedto insulate iron, copper, and other pipelines with operating temperatures between -120°C to 400°C in commercial & institutional buildings, and industrial facilities.
Product Performance
·Low thermal conductivity
·Low temperature can be used
·Fire resistance, non-combustible A1
·Stable fiber structure
·Asbestos free, non-toxic
·Sound absorption, noise reduction
·Excellent stiffness and recovery characteristics
Product Specification
| Type | GLASS WOOL PIPE 48,GLASS WOOL PIPE 64,GLASS WOOL PIPE 76 | |||||||||||
| Dia | Thickness (mm) | |||||||||||
| DN | INCH | ID | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 |
| 15 | 1/2 | 22 | ||||||||||
| 20 | 3/4 | 27 | ||||||||||
| 25 | 1 | 34 | ||||||||||
| 32 | 1-1/4 | 42 | ||||||||||
| 40 | 1-1/2 | 48 | ||||||||||
| 50 | 2 | 60 | ||||||||||
| 65 | 2-1/2 | 73 | ||||||||||
| 80 | 3 | 89 | ||||||||||
| 90 | 3-1/2 | 102 | ||||||||||
| 100 | 4 | 114 | ||||||||||
| 125 | 5 | 141 | ||||||||||
| 150 | 6 | 168 | ||||||||||
| 200 | 8 | 219 | ||||||||||
| 250 | 10 | 273 | ||||||||||
| 300 | 12 | 325 | ||||||||||
| 350 | 14 | 356 | ||||||||||
| 400 | 16 | 406 | ||||||||||
| 450 | 18 | 457 | ||||||||||
| 500 | 20 | 508 | ||||||||||
| 550 | 22 | 559 | ||||||||||
| 600 | 24 | 610 | ||||||||||
| Facing | Aluminum foil, PVC, black tissue, etc. or customized finish | |||||||||||
| Note | other size please contact our sales | |||||||||||
Technical Data
| ltem Name | Test Method | Standard Value | Test Value | |
| Dimension | ASTMC302-13(2017) | pass | ||
| Thermalconductivity W/(m·k) | 24°C | ASTMC335-17 ASTMC1045-19 | ≤0.036 | 0.035 |
| 93°C | ≤0.045 | 0.042 | ||
| 204°C | ≤0.065 | 0.063 | ||
| 260°C | ≤0.078 | 0.076 | ||
| 371°C | ≤0.111 | 0.101 | ||
| Service Temperature | ASTMC411-19 ASTMC417-15 | ≤400°C | 396°C | |
| Slag Resistance,max thickness change | ASTMC411-19 | ≤5.0% | 3.67% | |
| Non-Fibrous (Shot) content | ASTMC1335-12(2017) | ≤25% | 8.7% | |
| Linear Shrinkable at maximumuse temperature( 400°C) | ASTMC356-17 | ≤2.0% | 1.2% | |
| Water Vapor Sorption By Weight | ASTMC1104/C1104M-13a | ≤5.0% | 0.2% | |
| Flame Spread Index | ASTME84-19a | ≤25 | 0 | |
| Smoke-developed Index | ≤50 | 0 | ||
| Stress Corrosion Performance | ASTMC795-08(2013) | No crack | pass | |
The erformance of The roduct
The product features efficient insulation and heat preservation, sound absorption and noise reduction, fireproof and moisture-proof properties. It can significantly reduce heat loss, buffer vibrations, suppress noise from pipeline operation, and is resistant to corrosion with a long service life.
Product Application Scope
It is widely applied in the insulation protection of heating and cooling pipelines in buildings, pipelines in the chemical and power industries, and various conveying pipelines. It can adapt to different pipe diameters requirements, is easy to install, and effectively improves the energy efficiency and safety of the system.
