Customized Ceramic Fiber Blanket

Ceramic fiber blanket is a lightweight, high-temperature refractory made from spun alumina-silicate fibers. It offers low thermal conductivity, excellent shock resistance and superior chemical stability, making it ideal for furnace linings, boiler insulation and fire protection across metallurgy, petrochemical and power-generation industries.

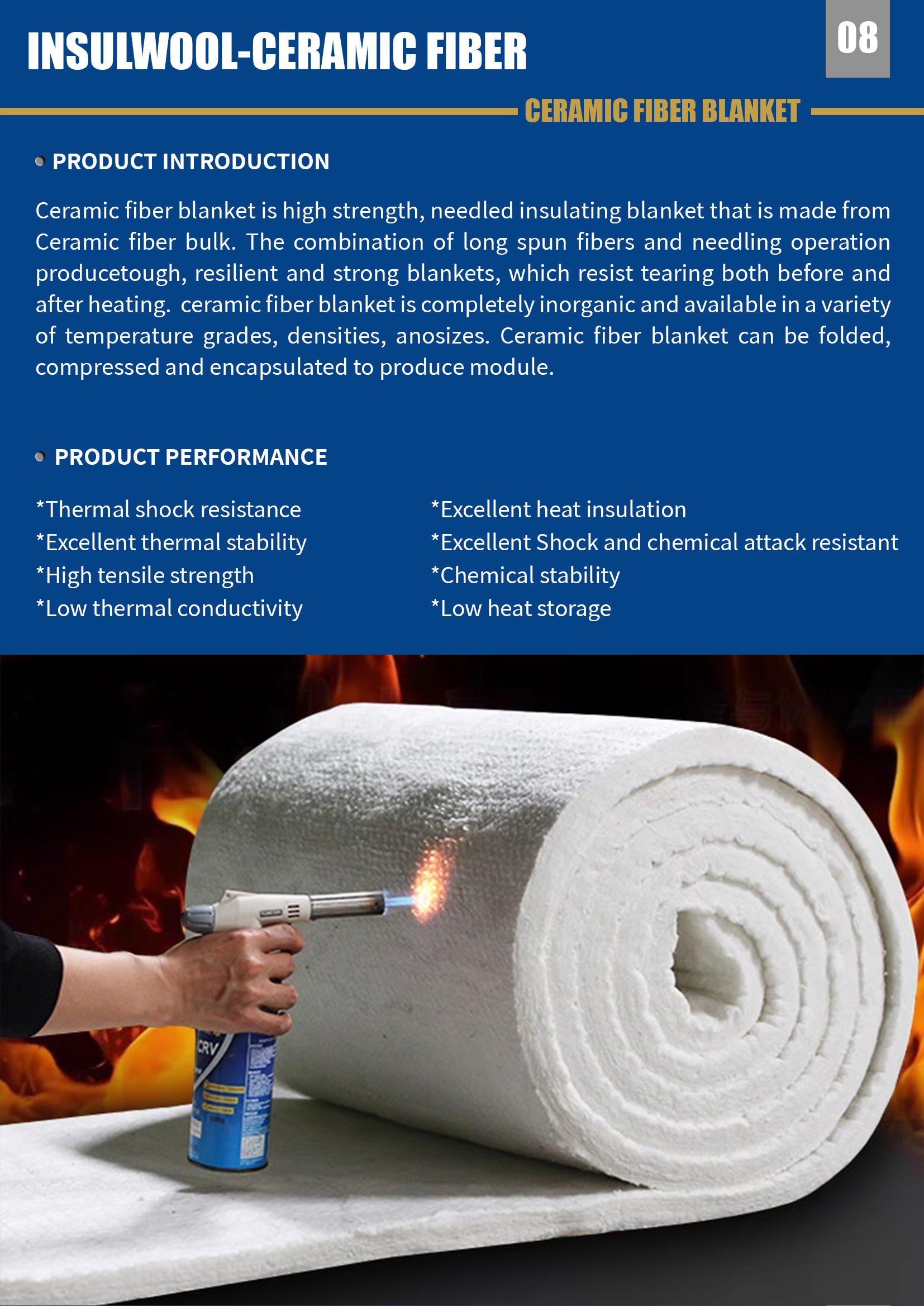

Ceramic fiber blanket is high strength, needled insulating blanket that is made from Ceramic fiber bulk. The combination of long spun fibers and needling operation producetough, resilient and strong blankets, which resist tearing both before and after heating.  ceramic fiber blanket is completely inorganic and available in a variety of temperature grades, densities, anosizes. Ceramic fiber blanket can be folded, compressed and encapsulated to produce module.



Customized Ceramic Fiber Blanket Product Performance

*Thermal shock resistance

*Excellent thermal stability

*High tensile strength

*Low thermal conductivity

*Excellent heat insulation

*Excellent Shock and chemical attack resistant

*Chemical stability

*Low heat storage

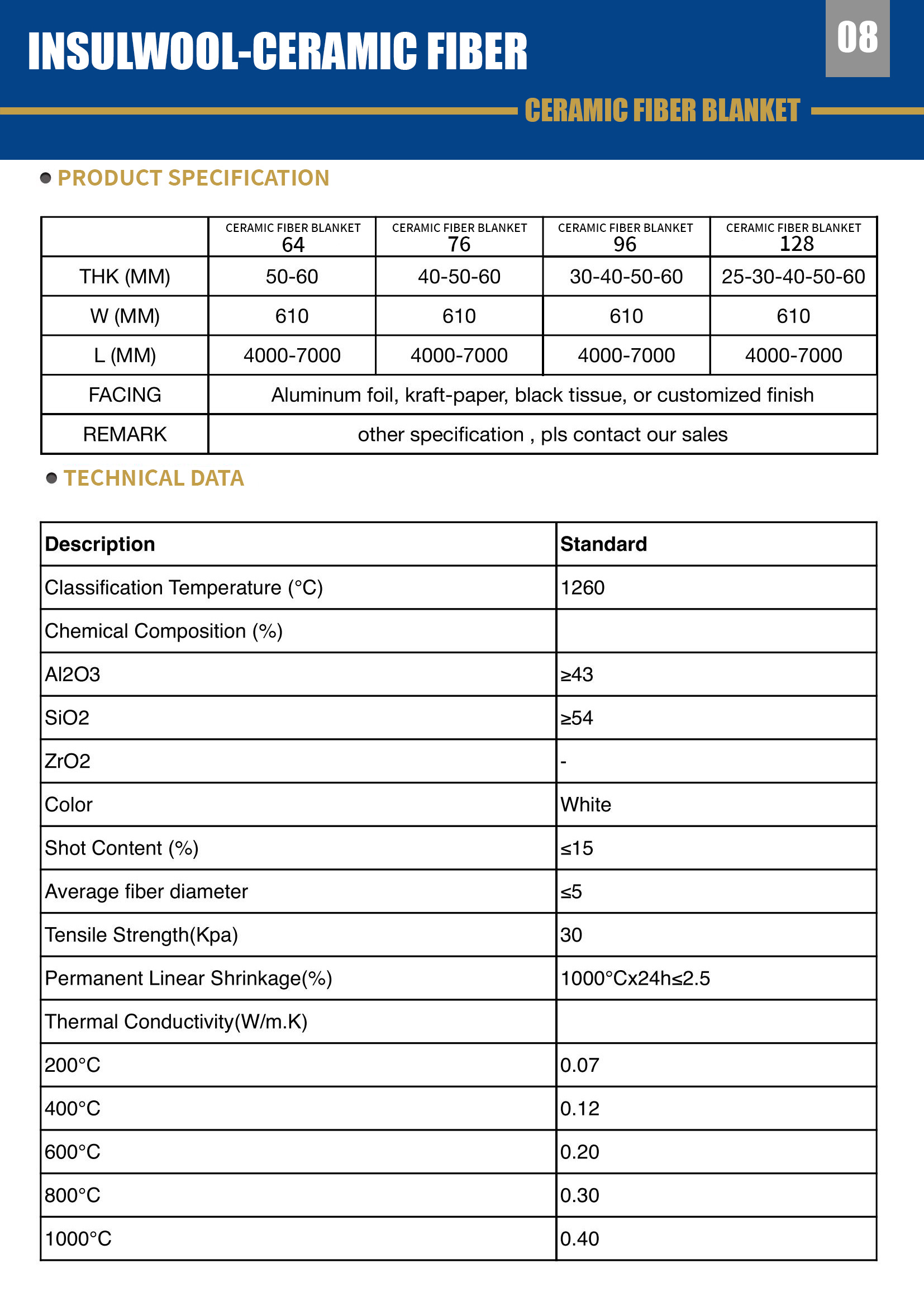

Customized Ceramic Fiber Blanket Specification

	CERAMIC FIBER BLANKET 64	CERAMIC FIBER BLANKET 76	CERAMIC FIBER BLANKET 96	CERAMIC FIBER BLANKET 128
THK (MM)	50-60	40-50-60	30-40-50-60	25-30-40-50-60
W(MM)	610	610	610	610
L(MM)	4000-7000	4000-7000	4000-7000	4000-7000
FACING	Aluminum foil, kraft-paper, black tissue, or customized finish
REMARK	other specification ,pls contact our sales



Customized Ceramic Fiber Blanket Technical Data

Description	Standard
Classification Temperature (°C)	1260
Chemical Composition (%)
AI2O3	≥43
SiO2	≥54
ZrO2	-
Color	White
Shot Content (%)	≤15
Average fiber diameter	≤5
Tensile Strength(Kpa)	30
Permanent Linear Shrinkage(%)	1000°Cx24h≤2.5
Thermal Conductivity(W/m.K)
200°C	0.07 0.12 0.20 0.30 0.40
400°C	0.12
600°C	0.20
800°C	0.30
1000°C	0.40



Installation Guidance of Customized Ceramic Fiber Blanket

1. Preparation: Ensure surfaces are clean, dry, and free of sharp objects.
2. Cutting: Use a ceramic fiber cutter or serrated knife for precise dimensions.
3. Placement: Roll or layer the blanket according to equipment specifications.
4. Fixing: Use stainless steel pins, wires, or adhesive binders for secure installation.
5. Sealing: Ensure all gaps are sealed to maximize insulation efficiency.



Maintenance of Customized Ceramic Fiber Blanket

• Routine Inspection: Check for fiber wear, compression, or gaps regularly.
• Cleaning: Light dusting is sufficient; avoid water exposure.
• Replacement: Replace sections showing significant wear to maintain thermal performance.
• Storage: Store in dry, ventilated areas to prevent moisture absorption and fiber degradation.



Recommended Pairings with Customized Ceramic Fiber Blanket

For enhanced insulation performance, Sunjoy recommends pairing the blanket with:

• Ceramic Fiber Paper for fine gap filling
• Ceramic Fiber Modules for rigid high-temperature applications
• High-Temperature Adhesives for secure bonding



FAQ

Q1: What temperature can this ceramic fiber blanket withstand?
A1: It can withstand temperatures up to 1260°C, making it suitable for most industrial heat applications.

Q2: Can I get custom thickness or density?
A2: Yes, Sunjoy provides fully customizable thickness, density, and roll dimensions to meet your specific needs.

Q3: Is it safe to handle without protective gear?
A3: While generally safe, we recommend gloves and masks to avoid minor fiber irritation during cutting or installation.

Q4: How do I clean the blanket if it gets dusty?
A4: Light dusting or using a low-pressure air blower is sufficient; avoid water exposure.

Q5: Can this blanket be used in outdoor or humid environments?
A5: It is best suited for dry, indoor high-temperature applications; use protective coatings for outdoor exposure.

Q6: How does this differ from regular ceramic fiber rolls?
A6: Sunjoy’s Customized Ceramic Fiber Blanket offers enhanced flexibility, tailored dimensions, and superior thermal performance for specialized industrial projects.



Enhance your thermal management with this effective glass wool blanket roll, engineered to deliver reliable insulation in demanding industrial settings. The ceramic fiber construction offers low thermal conductivity and exceptional resistance to thermal shock, maintaining stable performance even when exposed to extreme temperatures. This durable glass wool blanket roll provides superior chemical stability across various applications, including furnace linings, boiler insulation, and comprehensive fire protection systems. Industrial users benefit from the lightweight yet robust nature of this material, which simplifies installation while providing long-lasting insulation value in metallurgical, petrochemical, and power generation facilities.

The material's composition ensures consistent performance under challenging conditions. The alumina-silicate fibers create a flexible blanket that conforms easily to complex surfaces while maintaining its insulating properties over time. This reliable glass wool blanket roll withstands continuous exposure to high temperatures without significant degradation, offering a cost-effective solution for both permanent installations and temporary insulation needs. The combination of thermal efficiency, chemical resistance, and mechanical flexibility makes this product particularly valuable for engineers and maintenance professionals seeking to improve energy efficiency and safety standards in high-temperature industrial processes.
