Product Details

Aluminum silicate insulation pipe is a tubular insulation material made of aluminum silicate fiber as the main raw material through a special process. It has the characteristics of high temperature resistance, low thermal conductivity and light weight. According to the different alumina content, it can be divided into standard type, high purity type, high aluminum type and zirconium-containing type.

Product Introduction

Ceramic fiber pipe insulation is one-piece, 1000mm long hinged sections of aluminum silicate pipe Insulation that are opened, placed over the pipe and secured in place.lt is widel yused to insulate higher operating temperatures above 800°C in commercial & institutional and industrial facilities.

Product Performance

*Thermal shock resistance

*Excellent thermal stability

*High tensile strength

*Low thermal conductivity

*Excellent heat insulation

*Excellent Shock and chemical attack resistant

*Chemical stability

*Low heat storage

Product Specification

Type			CERAMIGFIBERPIPE70,80，100，120，150
Dia			Thickness (mm)
DN	INCH	ID	25	30	40	50	60	70	80	90	100	120
15	1/2	22
20	3/4	27
25	1	34
32	1-1/4	42
40	1-1/2	48
50	2	60
65	2-1/2	73
80	3	89
90	3-1/2	102
100	4	114
125	5	141
150	6	168
200	8	219
250	10	273
300	12	325
350	14	356
400	16	406
450	18	457
500	20	508
550	22	559
600	24	610
Facing	Aluminum foil, PVC, black tissue, etc.or customized finish
Note	other size please contact our sales

Technical Data

Description	Standard
Classification Temperature (°C)	1260
Average fiber diameter	≤5
Tensile Strength(Kpa)	30
Permanent Linear Shrinkage(%)	1000°Cx24hs2.5
Thermal Conductivity(W/m.K)
200°C	0.07
400°C	0.12
600°C	0.20
800°C	0.30
1000°C	0.40

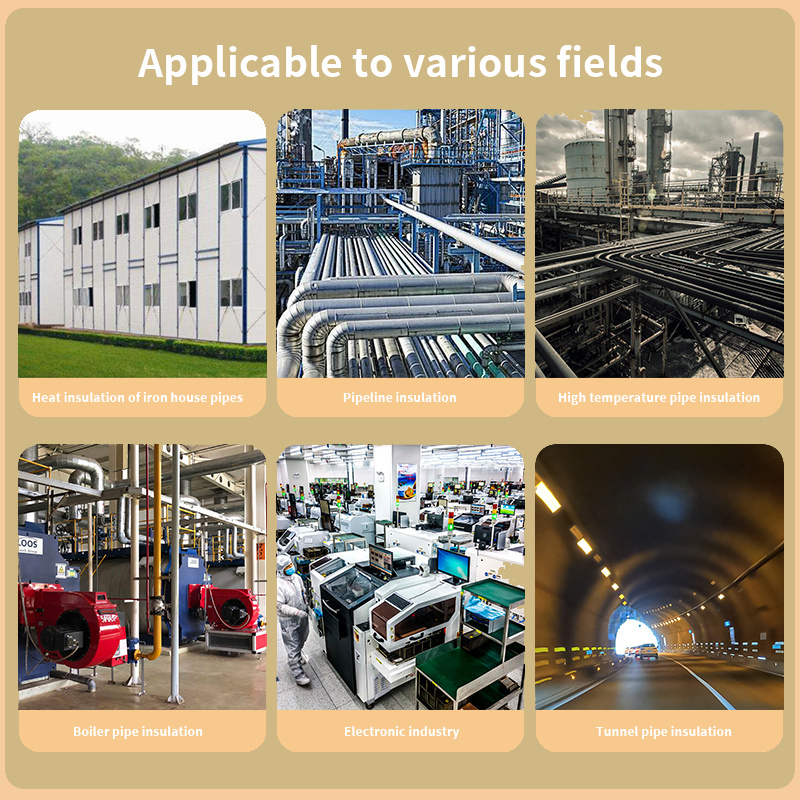

- Industrial high-temperature pipelines: such as power plant steam pipelines, metallurgical industry heating furnace pipelines, chemical reactor pipelines, etc., used to block high-temperature heat loss.
- Building insulation: high-rise building heating pipelines, central air-conditioning insulation pipelines, reduce energy loss and reduce noise.
- Kiln and equipment insulation: glass kiln, heat treatment furnace exhaust pipes and high-temperature equipment outer covering to improve thermal efficiency.



Engineered for extreme thermal environments, our wholesale ceramic fiber for high temperature delivers superior insulation performance in applications exceeding 800°C. The material is manufactured from aluminum silicate fibers formed into rigid, lightweight sections that provide excellent thermal resistance with minimal heat storage. The reliable performance of this wholesale ceramic fiber for high temperature makes it ideal for insulating pipes, furnaces, kilns, and industrial equipment where both energy efficiency and personnel safety are critical considerations.

The practical advantages of this wholesale ceramic fiber for high temperature include its pre-formed pipe sections that simplify installation and reduce labor time. Available in various alumina compositions including standard, high-purity, and zirconium-containing grades, this material can be tailored to specific temperature requirements and chemical environments. The combination of high-temperature resistance, low thermal conductivity, and easy installation makes our wholesale ceramic fiber for high temperature an excellent choice for power generation, metal processing, and manufacturing facilities seeking to improve thermal management and reduce energy costs.

Aluminum silicate insulation pipe is a tubular insulation material made of aluminum silicate fiber as the main raw material through a special process. It has the characteristics of high temperature resistance, low thermal conductivity and light weight. According to the different alumina content, it can be divided into standard type, high purity type, high aluminum type and zirconium-containing type.
