Product Details

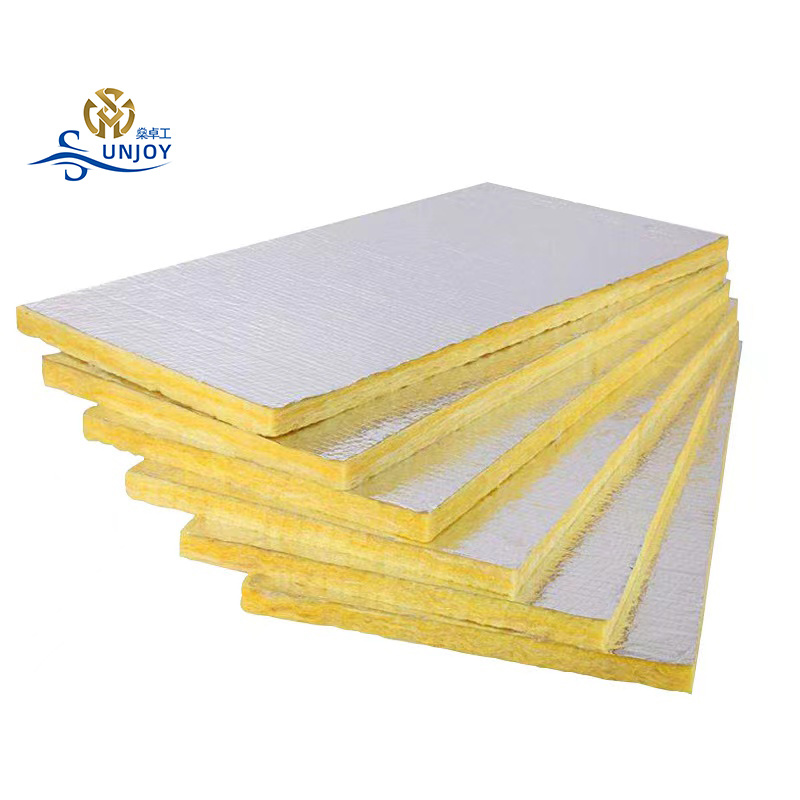

Achieve superior thermal and acoustic insulation with this cheap thermal glass wool board from China, designed for various construction applications. The aluminum foil covering enhances its functionality by creating an effective vapor barrier while reflecting heat, significantly improving energy efficiency in walls, ducts, and roofing systems. This quality thermal glass wool board is manufactured from durable materials including silica sand and dolomite, creating a dense fibrous structure that effectively traps air to minimize heat transfer and reduce noise penetration between spaces.

The practical benefits of this insulation solution make it ideal for both professional and DIY projects. Builders can rely on this cheap thermal glass wool board from China to maintain consistent indoor temperatures while lowering energy costs throughout the year. The aluminum foil facing adds durability and simplifies installation, ensuring long-term performance without compromising on value. As a proven quality thermal glass wool board, it offers dependable performance that meets the demands of modern construction, providing an accessible insulation solution that doesn't sacrifice effectiveness for affordability.

product Introduction

Glass wool slab is placed in the glass of meltdown appearance proceed the fiber turn and spray the resin of solid that draw the hot silk wadding form material, then turn through hot solid the deep processing handles and can also make into the series andvarious products.  Glass wool slab is processed by putting the thermosetting binder into the glass wool, by pressing and heating, and then, by curing. They are widely used for insulation ,ventilation and the adjustment of air-conditioner incommercial industry and residential construction. Meanwhile, it has the effect ofenergy-saving insulation, sound controlling and improving the indoor air quality. glass wool slab is rigid but flexible product and no corrosion to the tank or pipe surfaceeasy to install and fixed with wire or banding and clip, then covered by galvanized sheet or aluminum sheet to protect the glass wool from UV, weathering influence.

Product Performance

·Low thermal conductivity

· Low temperature can be used

· Fire resistance, non-combustible A1

· Stable fiber structure
·Asbestos free, non-toxic

·Sound absorption, noise reduction

·Excellent stiffness and recovery characteristics

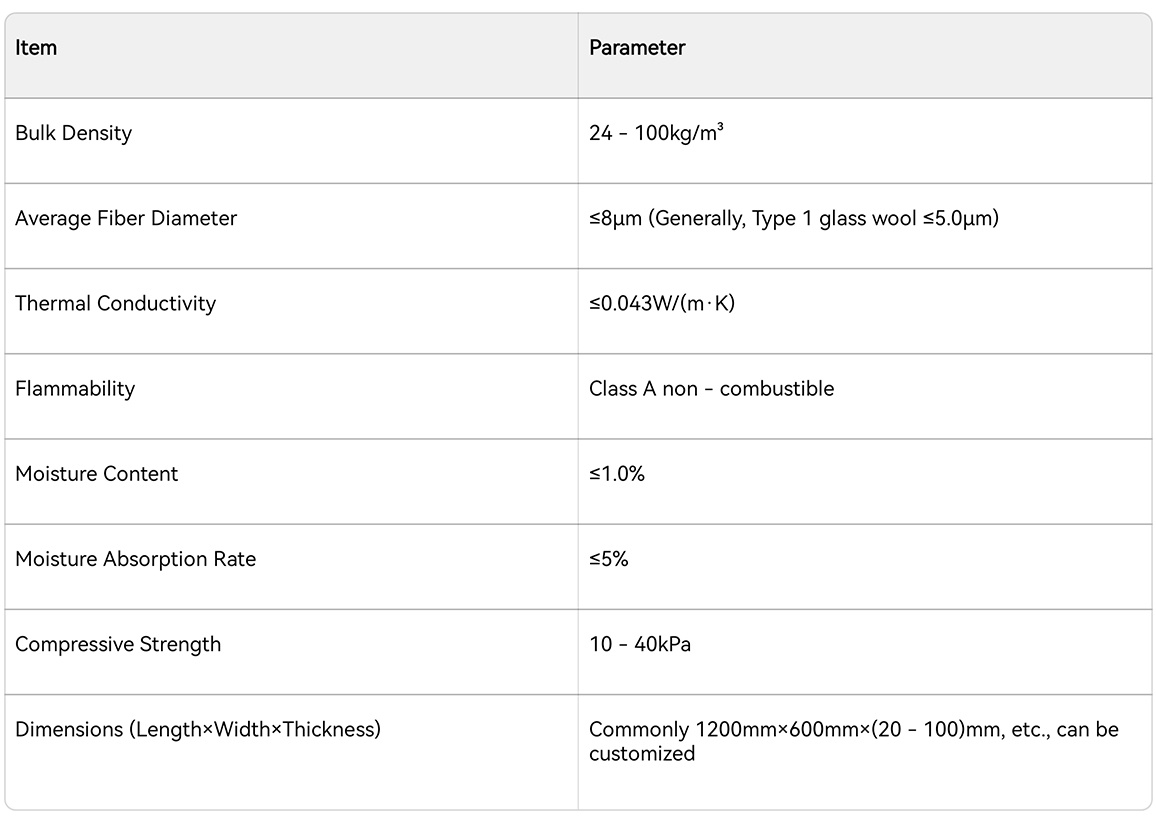

Product Specification

	IW-GS 24	IW-GS 32	IW-GS 48	IW-GS 64	IW-GS 98
THK (MM)	30-150	40-140	30-100	20-80	10-50
W (MM)	600-1200	600-1200	600-1200	600-1200	600-1200
L (MM)	1200-1200	1200-1200	1200-1200	1200-1200	1200-1200
FACING	Aluminum foil, kraft-paper, black tissue, or customized finish
REMARK	other specification , pls contact our sales

Technical Data(ASTM C553)

Item		Test Method	Standard Value	Test Value
Service Temperature		ASTMC612-14	No warping, flaming.glowing, Smolderingand smoking	400°C
Non-Fibrous (Shot) content(%)		ASTMC612-14  ASTM C1335-12	≤25	10.1%
Thermal Conductivity  W/(m·k)	24°C	ASTM C612-14  ASTMC518-17  ASTM C177-19	≤0.036	0.036
	93°C		≤0.043	0.041
	204°C		≤0.061	0.056
	260°C		≤0.076	0.068
	371°C		≤0.108	0.085
Compressive Resistance at 10% deformation		ASTM C612-14  ASTMC165-07(2017)	22.4	32kpa
Semi-rigid or Rigid		ASTMC612-14	Semi-rigid or Rigid	Semi-rigid
Flame Spread Index		ASTM C612-14  ASTME84-18	≤25	0
Smoke-developed Index		ASTM C612-14  ASTME84-18	≤ 50	0
Odor Emission		ASTM C612-14 ASTMC1101/C1101M-06	A detectable odor of  Objectionable nature recorded  by morethan two of the five panel  members shall constitute rejec	None of 5 members considered the odor was objectionable  and strong.
Water Vapor Sorption by weight		ASTM C612-14  ASTMC1104/C1104M-19	S5.0%	2.3%
Corrosiveness to Steel		ASTM C612-14  ASTMC665-17	≥21	46
Resistance to Fungi		ASTM C612-14  ASTMC1338-14	Growth no greater than  that a comparative itemcomparative	No growth apparent under 40 times magnification

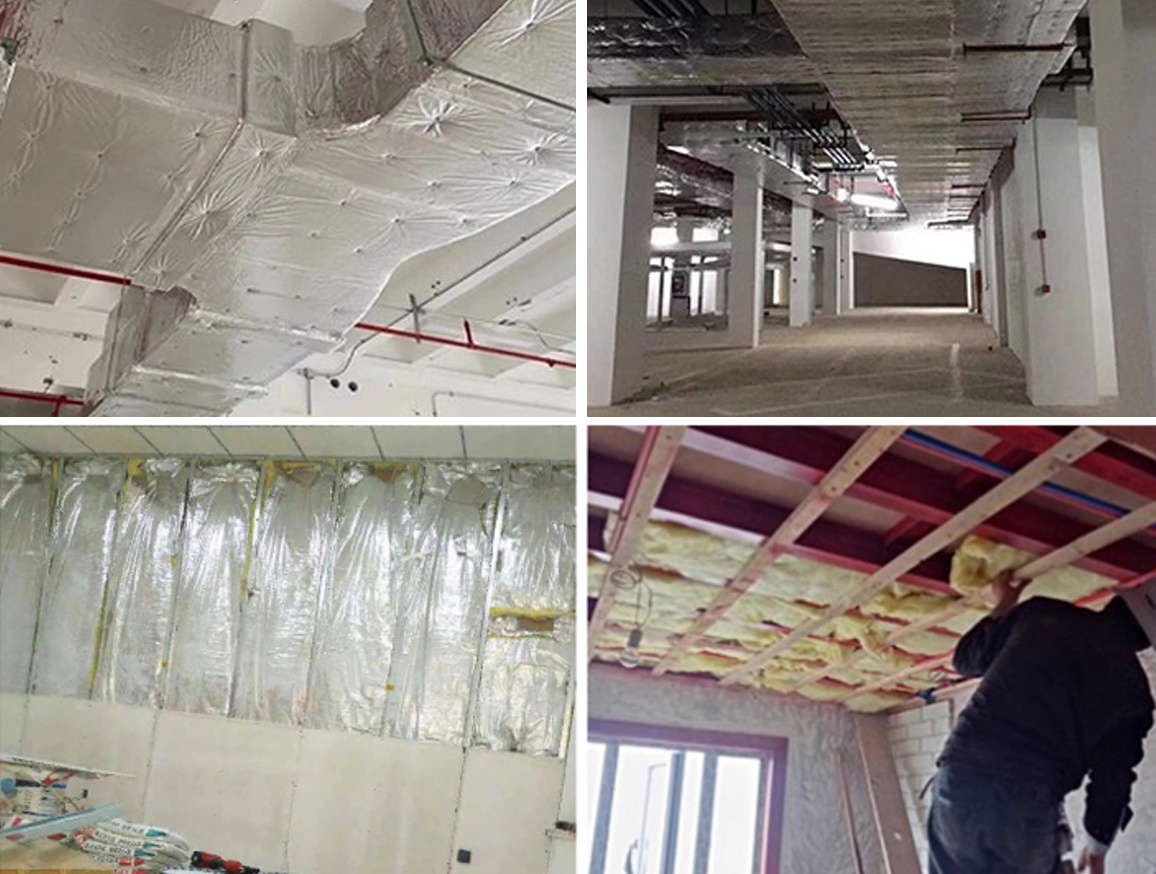

Suitable for heat insulation, sound absorption and noise reduction of industrial plants, warehouses, public facilities, exhibition centers, shopping malls, various indoor playgrounds, sports venues and other buildings.

Glass wool board is made of glass pieces, dolomite, silica sand and fledspar, mainly used for drywall, partition, duct board and roofing insulation, have excellent thermal and soundproof performance
